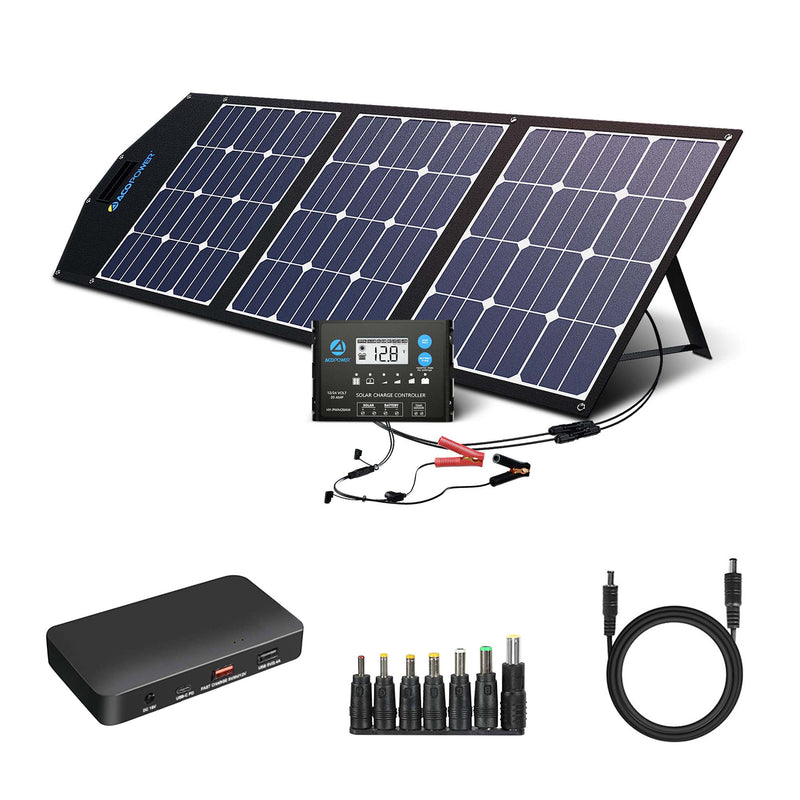

LTK 120W Foldable Solar Panel Kit With ProteusX 20A Charge Controller


Product description: ACOPOWER 120W Foldable Solar Panel Suitcase features an extra portable design with durable quality for outdoor activities.

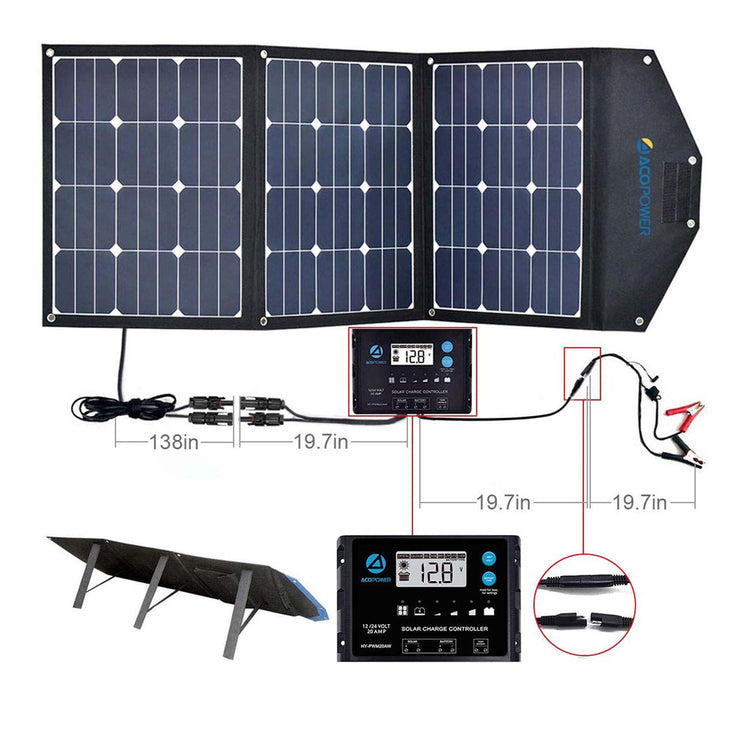

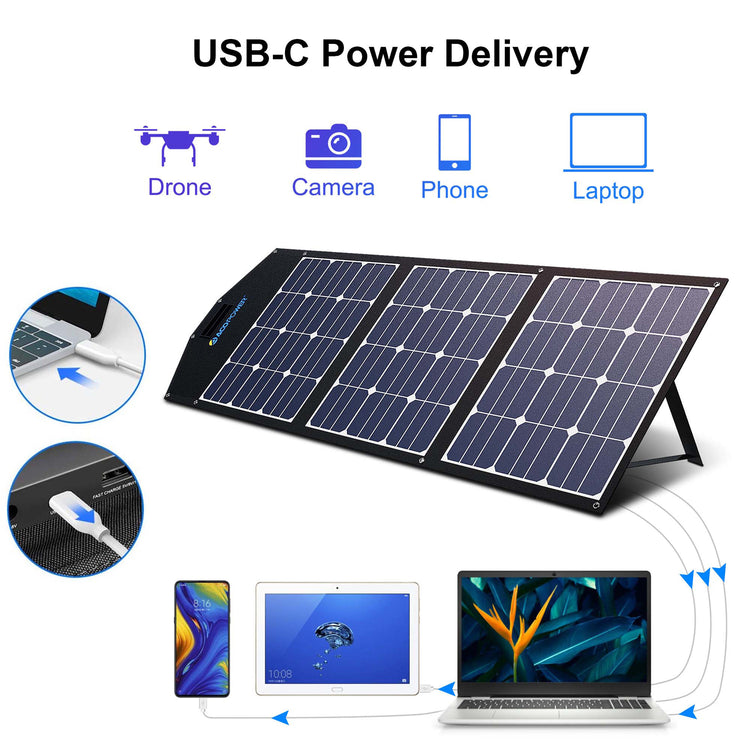

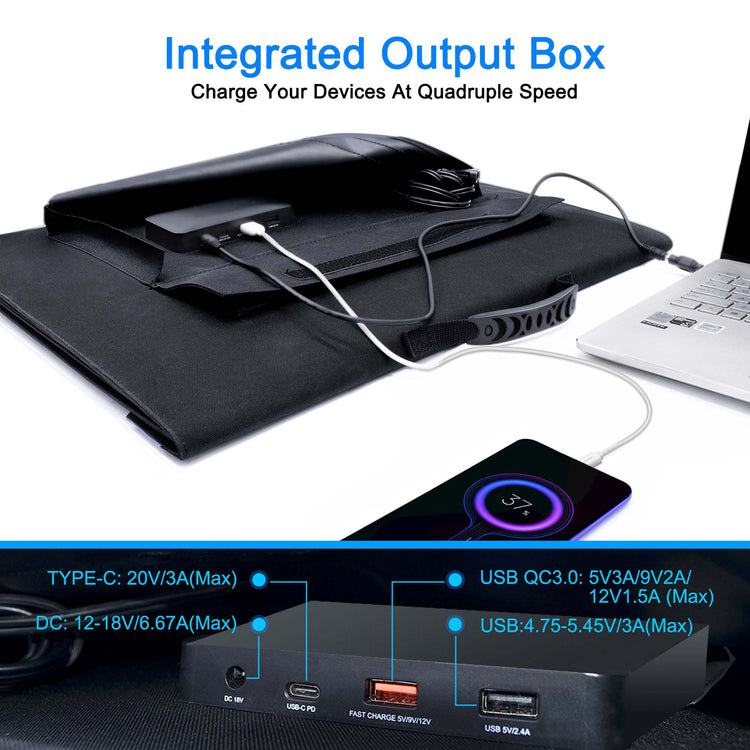

In the pocket of the suitcase, it has a 20A LCD waterproof charge controller, Alligator clamps for battery charging, a USB QC 3.0 port, a USB-C(Type C) port, a USB,a DC to DC adapter, different size of connectors connector two pairs of MC4 Connectors where the charge controller could be removed, or an extension cable could be insert, and SAE to SAE adapter where it can be connected to the RV directly.
Work As a Solar Panel Only:

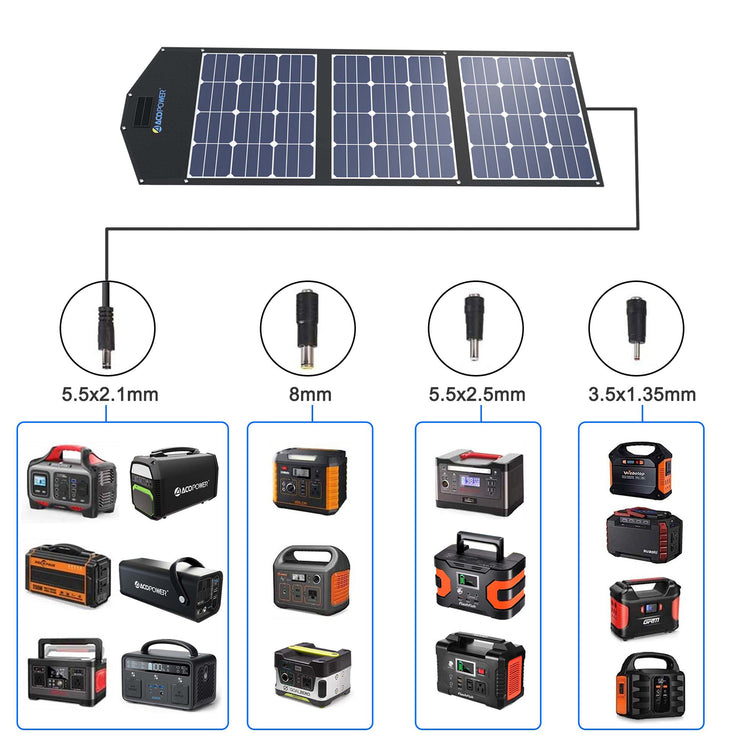

• Using the corresponding connector(Includes different size of connectors) with your solar generator
• Start to charge
Work as a Solar Panel Kit:

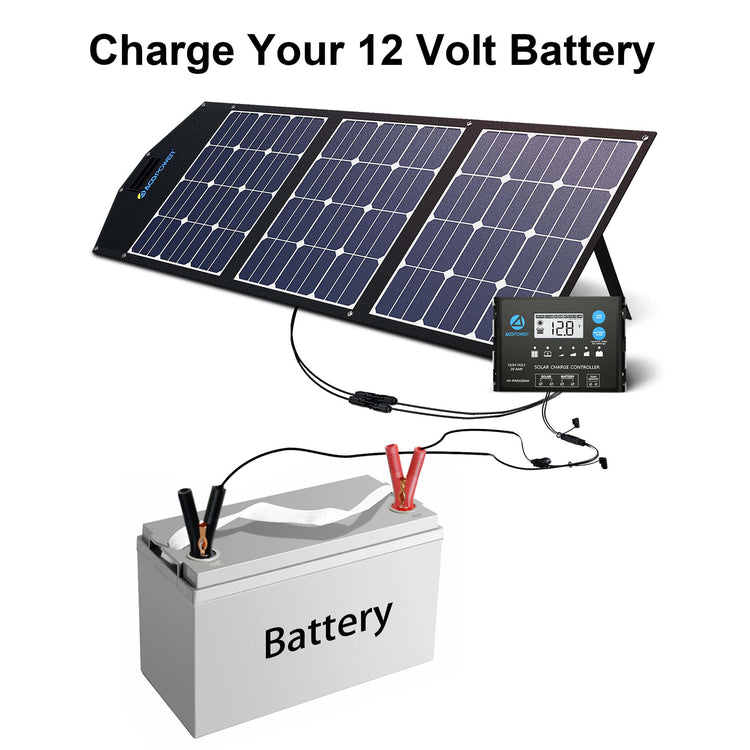

Connect the red alligator clamp to Positive while black to Negative
· Start to charge
· Battery Type Options: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, Crystal and Calcium.
· 12 Voltage Battery only
If your battery voltage is too low, (Lower than 3V) it could not work.
The charge controller avoids overcharging and discharging and protects your battery.
Test the product by connecting a proper battery firstly.
120W Solar Panel

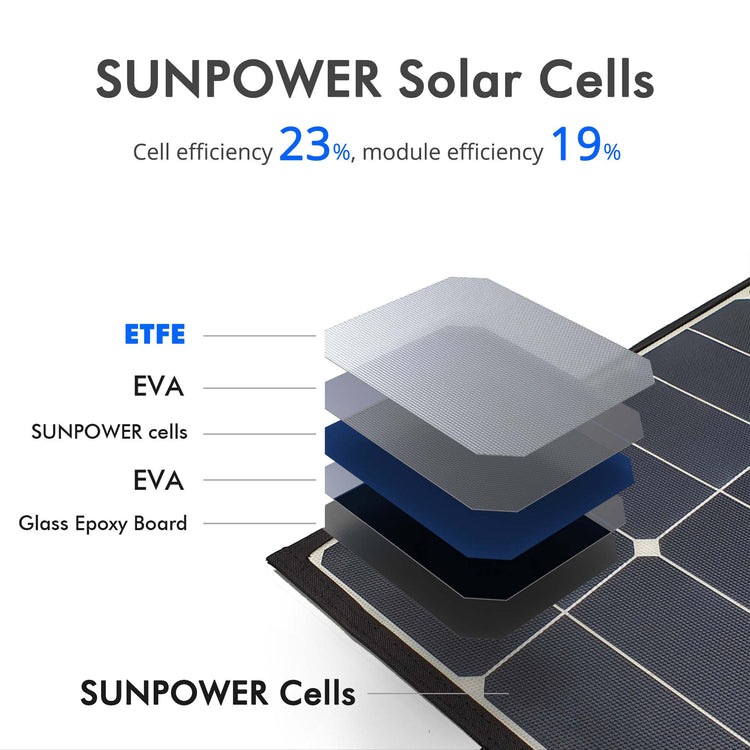

(Made of SunPower Solar Cell)
Voltage at nominal power [V] Vmp 18V
Current at nominal power [A] Imp 5.97A
Open-circuit voltage [V] Voc 24.6V
Short-circuit current [A] Isc 6.32A
Unfolding Size: 56.7x22x0.2inch

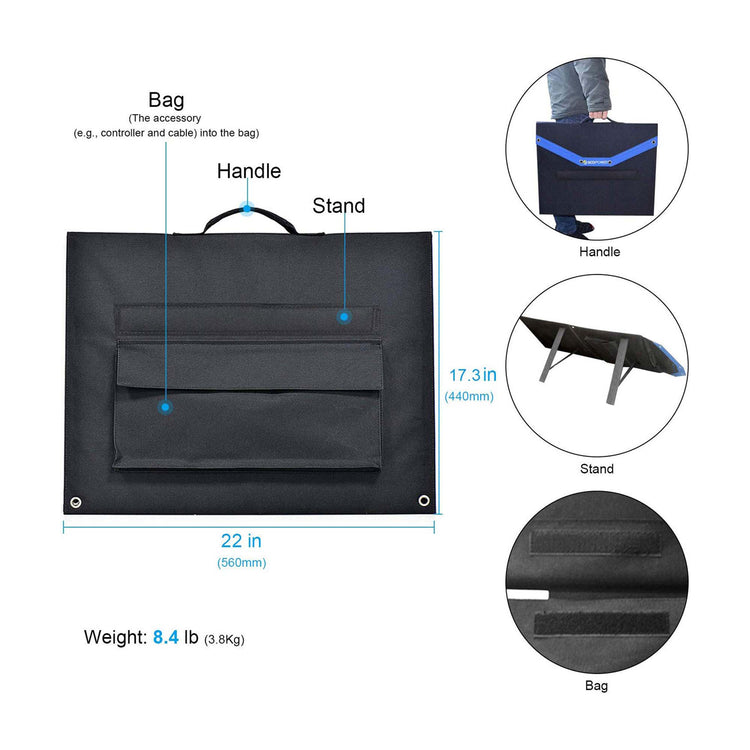

Folding size: 22x17.5x1.2 inch
Weight: 8.4lbs
ProteusX 20A PWM Waterproof Charge Controller
Grounding: Common Negative
Nominal Voltage: 12V/ 24V DC
Rated Charge Current: 20A
Max. PV Input Voltage: 50V
Battery Start Charging Voltage: 3V
Dimensions: 5.59x 3.7x 1.06 inch
Weight: 1.1 lbs.
